Cloud Reproducibility Triangle (CRT)¶

What you’ll learn Launch a CyVerse Discovery Environment (DE) JupyterLab session, connect to GitHub with SSH through the Git sidebar, move data with GoCommands, and—most importantly—keep your work alive after an ephemeral compute session ends.

1. Why the Triangle?¶

Across science platforms like BinderHub, JupyterHub classrooms, and cloud services such as Azure ML or Vertex AI Workbench, the same pattern repeats:

GitHub (or GitLab, etc.) for code & collaboration
Ephemeral compute (JupyterLab, containerized notebooks, VICE apps) for analysis
Persistent storage (cloud volumes, object stores, CyVerse Data Store) for datasets and results

This is the Cloud Triangle. It’s not bureaucracy—it’s the habit that keeps your work reproducible, durable, and shareable.

Think of it like this:

Compute = your scratch pad: fast but disposable
GitHub = your lab notebook: versioned, accountable, and collaborative
Data Store = your filing cabinet: heavy, permanent, and backed up

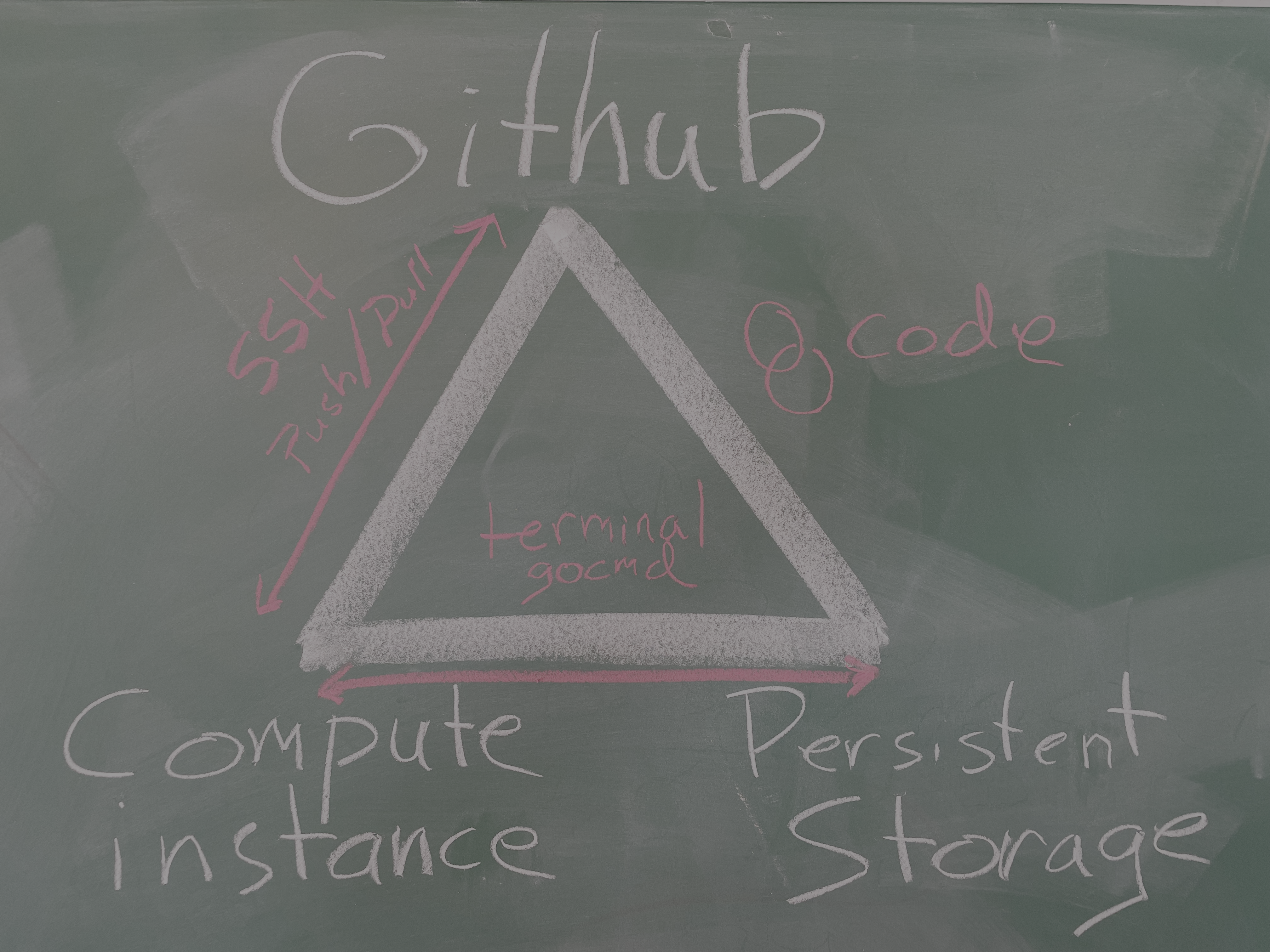

Cloud Triangle

Golden Rule
Never let the only copy of your work live on the instance. If you don’t push to GitHub or save to the Data Store, it will vanish when compute stops.

2. The Routine (clone → compute → preserve)¶

Launch an instance.
In the Discovery Environment, start a JupyterLab session using the course’s containerized image so everyone shares the same software.
Connect GitHub (no shell required). Open the Git sidebar → Clone a Repository → paste your SSH URL git@github.com:ORG/REPO.git (e.g., git@github.com:CU-ESIIL/Ty_ed_demo.git to practice). Stage with checkboxes, write a message, Commit, then Push.
Fetch data (stream only what you need).
Use GoCommands (resumable transfers) to pull datasets from the CyVerse Data Store.
With the i: prefix you copy exactly what you need into ./data/ for this run.
Compute (scratch space mindset).
Treat the instance like a scratch pad. Run notebooks, generate intermediates, iterate fast.
Remember: the VM is temporary; don’t assume its local files will persist.
Preserve (separate code from data).
Code & small artifacts → GitHub
Large outputs → Data Store
When both are saved, shut down the instance—nothing important is left behind.

This rhythm—clone → compute → preserve—is the Cloud Triangle in motion.

3. Anatomy of the Cloud Triangle¶

A) Compute — CyVerse DE / Jetstream2 - Instance (VM / VICE app)
What: A running virtual machine in CyVerse DE that pairs a hardware profile with a container image.
Why: Everyone starts identical; you “rent” compute only while it’s on; local files are temporary.
How (here): DE → Apps → JupyterLab → launch with the course preset.

Image → Container
What: An image is a frozen software recipe; a container is that image running inside your instance.
Why: Reproducibility—no “works on my laptop” drift.
How (here): Use the ESIIL large spatial analysis image (satellite-focused). For repeat needs, bake changes into a new image rather than ad‑hoc installs.
Hardware profile
What: vCPUs, RAM, GPUs, and disk size for your instance.
Why: Right-size performance while sharing resources fairly.
How (here): Pick the Jetstream2 course profile provided in DE.
Jetstream2
What: NSF cloud where many DE apps run.
Why: Academic cloud at scale for on-demand classrooms and research.
How (here): Your instance is scheduled on Jetstream2 when you launch JupyterLab.
ACCESS-CI (when you need more)
What: Program to obtain larger/longer compute allocations.
Why: Run bigger jobs without straining shared classroom quotas.
How (here): If you consistently outgrow presets, request an allocation and attach that hardware pack to your DE launches.
Local disk (instance scratch)
What: The filesystem inside your VM (e.g., your working directory ~).
Why: Fast for computation and intermediates but ephemeral—can disappear when the app stops.
How (here): Work in ./data/ or ./tmp/ during the session; before stopping, move deliverables to persistent storage (see Storage).

B) Persistent Storage — CyVerse Data Store (UArizona) - Remote disk (Data Store / iRODS)
What: Your durable home at /iplant/home/<username> hosted at the University of Arizona, behind a firewall.
Why: Backed‑up, shareable, and persists beyond any single VM.
How (here): From compute, use the i: prefix for paths, e.g., i:/iplant/home/<username>/projects/....

Network layout (why local ≠ remote)
What: Compute (Jetstream2) and storage (UArizona Data Store) live in different places and are separated by a firewall.
Why: Expect latency; uploading/downloading is a deliberate step—don’t assume local files persist.
How (here): Pull only what you need for a run; push results back when done.
GoCommands (data mover)
What: Cross‑platform CLI for robust, resumable, checksum‑verified transfers to/from the Data Store.
Why: Reliable for “data are heavy” workflows and long‑running moves.
How (here): Use i: paths with GoCommands to move between the VM and /iplant/home/<username>/.... For small items, the DE file browser is fine.

C) GitHub — Code, Website & Auth (Jupyter‑first) - Git (JupyterLab Git widget) — Clone vs Repo modes
What: Built‑in panel for clone, stage, commit, push—no terminal needed.
Why: Safer staging (you can see file sizes), fewer auth pitfalls, harder to accidentally commit huge data.
How (here):
1) Pre‑req: Set up SSH key or Web Authentication (2FA via browser) first.
2) Be in your top‑level working folder in the file browser (the place you want the repo folder to appear).
3) Open the Git sidebar (left toolbar).
• Not in a repo yet: You’ll see three blue buttons (e.g., Clone a Repository, Create a New Repository, Open a Repository). Click Clone a Repository and paste your SSH URL git@github.com:ORG/REPO.git (e.g., git@github.com:CU-ESIIL/Ty_ed_demo.git to practice). • Already inside a repo folder: You’ll see the status panel (Unstaged ↔ Staged changes, commit message box) with Commit / Push / Pull buttons. Use checkboxes to stage only what you intend to version.

Tip: Keep big data out of Git. The widget’s file‑by‑file staging makes it obvious when you’re about to add large artifacts—uncheck them and use the Data Store instead.

SSH key (for GitHub)
What: Password‑less credential stored in ~/.ssh/ inside the instance.
Why: Works cleanly with 2FA; avoids repeated prompts.
How (here): Generate once on an instance, add the public key to GitHub (Settings → SSH keys). The Git widget will push/pull over SSH automatically.
Web Authentication (2FA via browser) — optional HTTPS path
What: Uses the gh CLI to open a browser and store a token; Git delegates credentials to gh.
Why: Handy on ephemeral VMs when you don’t want to manage SSH keys.
How (here): Run the provided notebook cell once per new instance to log in via web; after that the Git widget can operate over HTTPS.
GitHub Pages (project website)
What: A static site built directly from your repo.
Why: Push once; your docs/tutorials publish automatically.
How (here): In GitHub → Settings → Pages → Deploy from a branch → main + /docs. Put site files in /docs/ (e.g., docs/index.md), then Commit/Push from the widget.

From pages in docs/quickstart/..., use ../assets/... (or {{ '/assets/... ' | relative_url }} if using Jekyll) so paths don’t duplicate docs/.
Markdown (docs & Pages authoring)
What: Plain‑text syntax for structured docs (headings, lists, links, images, code). Renders consistently on GitHub and on your Pages site.
Why: Fast, versionable, and reviewable; encourages clear communication. Perfect for lab notes, assignments, and how‑tos.
How (here):
Put site files in /docs/ (e.g., docs/index.md, docs/quickstart/getting-started.md).
Use relative links between pages: [Next →](../quickstart/getting-started.md).
Images from a page under docs/quickstart/: ../assets/... (or Jekyll: {{ '/assets/... ' | relative_url }}).
Code fences for reproducible snippets:
```
# example
print("hello, world")
```

Optional Jekyll front matter for page metadata:

---
title: Getting Started
layout: default
---

GitHub CLI (gh) — optional power tool
What: Command‑line helper for GitHub tasks (auth, PRs, releases).
Why: Useful for scripted workflows and browser‑based 2FA login on ephemeral instances.
How (here): Use gh auth login --web to establish HTTPS credentials, or for advanced operations (opening PRs, viewing issues).
Caveat: The CLI doesn’t “protect” you from committing large files—Git will still reject pushes over size limits. The widget’s staging UI makes it easier to avoid adding big data in the first place. Keep large artifacts in the CyVerse Data Store, not in Git.

A sensible .gitignore starter (to reduce accidents)

# keep heavy data out of git
data/
*.tif
*.tiff
*.h5
*.hdf5
*.nc
*.zip
*.tar
*.parquet
*.feather

# notebooks: keep checkpoints out
.ipynb_checkpoints/

# environments & caches
.env
.venv/
__pycache__/
*.pyc

Golden workflow Clone (GitHub) → Compute (local scratch) → Preserve (GitHub + Data Store) → Shut down.
Remember: compute runs on Jetstream2; persistent storage is at UArizona behind a firewall—plan transfers, don’t assume local files persist.

4. Go through the routine yourself (step-by-step)¶

Launch an instance.
Choose the course JupyterLab image and start it in CyVerse DE.
Set up GitHub auth (one-time on each new VM).

2A. SSH (recommended) — works cleanly with 2FA, no passwords.

import os, subprocess, textwrap

def add_github_to_known_hosts():
    ssh_dir = os.path.expanduser("~/.ssh")
    known_hosts = os.path.join(ssh_dir, "known_hosts")
    os.makedirs(ssh_dir, exist_ok=True)
    out = subprocess.run(
        ["ssh-keyscan", "-t", "rsa,ed25519", "github.com"],
        capture_output=True, text=True, check=True
    ).stdout.strip()
    with open(known_hosts, "a") as fh:
        if out:
            fh.write(out + "\n")
    print("github.com added to known_hosts")

def configure():
    username = input("GitHub username: ")
    email = input("GitHub email: ")

    subprocess.run(["git", "config", "--global", "user.name", username], check=True)
    subprocess.run(["git", "config", "--global", "user.email", email], check=True)

    ssh_dir = os.path.expanduser("~/.ssh")
    os.makedirs(ssh_dir, exist_ok=True)
    key_path = os.path.join(ssh_dir, "github")  # ~./ssh/github and github.pub

    # Create Ed25519 keypair (no passphrase for this ephemeral VM)
    subprocess.run(["ssh-keygen", "-t", "ed25519", "-f", key_path, "-N", ""], check=True)

    # Minimal SSH config entry
    cfg_path = os.path.join(ssh_dir, "config")
    block = textwrap.dedent(f"""\
    Host github.com
      HostName github.com
      User git
      IdentityFile {key_path}
    """)
    with open(cfg_path, "a") as fh:
        fh.write(block)

    # Start agent and add key
    subprocess.run(f'eval "$(ssh-agent -s)" && ssh-add {key_path}', shell=True, check=True)

    add_github_to_known_hosts()

    with open(key_path + ".pub") as fh:
        pub = fh.read().strip()
    print("\nPublic key — copy to GitHub → Settings → SSH keys:\n")
    print(pub, "\n")

configure()

Keys live in ~/.ssh/ (your home). Never use /.ssh/ (the root).

Add this key to your GitHub profile (one time):
1. Copy the public key the script printed (the line starting with ssh-ed25519 or ssh-rsa).
2. In GitHub: click your avatar → Settings → SSH and GPG keys → New SSH key.
3. Title: CyVerse VM (or similar).
4. Key: paste the public key from the instance.
5. Click Add SSH key.
After this, GitHub recognizes this instance as you, and the JupyterLab Git widget can push/pull over SSH.

2B. Web Authentication (optional HTTPS path) — if you prefer browser-based 2FA token via GitHub CLI:

# Activate env and login via web; then wire git -> gh credential helper
!eval "$(conda shell.bash hook)" && conda activate macrosystems && yes | gh auth login --hostname github.com --web -p https
!git config --global credential.helper '!eval "$(conda shell.bash hook)" && conda activate macrosystems && gh auth git-credential'
!gh auth status

Clone with the Git widget (Jupyter sidebar).
In the file browser, navigate to your top-level working folder (where you want the repo folder created).
Open the Git sidebar (left toolbar).
- If you’re not inside a repo yet: you’ll see three blue buttons (e.g., Clone a Repository, Create a New Repository, Open a Repository). Click Clone a Repository and paste your SSH URL git@github.com:ORG/REPO.git (e.g., git@github.com:CU-ESIIL/Ty_ed_demo.git to practice).
- If you are inside a repo folder: you’ll see the status panel (Unstaged/Staged changes, commit box) with Commit / Push / Pull.

  Tip: Use the checkboxes to avoid staging large data files—keep those in the Data Store.
Compute (scratch-space mindset).
Run notebooks, generate intermediates locally. Assume local files can disappear when the app stops.

Install GoCommands (data mover).

GOCMD_VER=$(curl -L -s https://raw.githubusercontent.com/cyverse/gocommands/main/VERSION.txt); \
curl -L -s https://github.com/cyverse/gocommands/releases/download/${GOCMD_VER}/gocmd-${GOCMD_VER}-linux-amd64.tar.gz | tar zxvf -
./gocmd init
./gocmd whoami

During ./gocmd init, you’ll be prompted for:

iRODS Host [data.cyverse.org]:
iRODS Port [1247]:
iRODS Zone [iplant]:
iRODS Username: <your CyVerse username>
iRODS Password: <your CyVerse password>

- Press Enter to accept the defaults in brackets for Host/Port/Zone. - Use your CyVerse (DE) username/password for the credentials prompts. - If you mistype anything, just rerun ./gocmd init to correct it. - Settings are saved under ~/.irods/ and you can verify the login with ./gocmd whoami.

Fetch data (only what you need).

# 1) Create a local folder for this run (or use an existing folder you already have)
mkdir -p data

# 2) Copy from the CyVerse Data Store into ./data/
#    IMPORTANT: replace <username> with your CyVerse username (NO angle brackets)
#    Example path: i:/iplant/home/alovelace/projects/myproj/data/
./gocmd get --icat --retry 3 -d -k -r \
  i:/iplant/home/<username>/projects/myproj/data/ \
  ./data/
```bash
mkdir -p data
./gocmd get --icat --retry 3 -d -k -r \
  i:/iplant/home/<username>/projects/myproj/data/ \
  ./data/

Push outputs back (preserve results).

# 1) Push from local outputs/ to the Data Store
#    IMPORTANT: replace <username> with your CyVerse username (NO angle brackets)
#    Example remote folder: i:/iplant/home/alovelace/projects/myproj/outputs/
./gocmd put --diff --icat --retry 3 -d -k \
  outputs/run-20240101/ \
  i:/iplant/home/<username>/projects/myproj/outputs/
```bash
./gocmd put --diff --icat --retry 3 -d -k \
  outputs/run-20240101/ \
  i:/iplant/home/<username>/projects/myproj/outputs/

Shut down safely (manage instances in DE).
In the CyVerse DE, go to the Analyses tab to see all running instances.
Auto-shutdown: Analyses are set to stop automatically after 4 hours unless you extend the time.
Extend runtime: Click the hourglass next to your analysis to extend the time window. You can repeat this as needed for longer sessions.
Analysis ID: The Analyses tab shows the Analysis ID — include this in support requests if something goes wrong.
Terminate: Use the red stop button to end the instance when you’re done.

Ethics of resource use
Choose an instance size and runtime that match the job. Big or long is fine when justified; what's not okay is locking up resources you aren't using. If a run is idle, extend only when you return, and terminate when finished.

Code is in GitHub; data is in the Data Store—nothing important is left on the VM.

5. Good Project Habits¶

Design your repo so collaborators (and future‑you) can rerun it without guessing.

repo/
  README.md                 # what this does; how to run; links to Pages site
  env/                      # environment.yml or requirements.txt; container tag notes
  src/                      # source code (functions, modules)
  notebooks/                # small notebooks only (exploration, figures)
  configs/                  # YAML/JSON configs for runs; record parameters here
  data/                     # small samples only; real data lives in the Data Store
    README.md               # i: paths + size notes + fetch instructions
  outputs/                  # tiny examples only; real outputs go to Data Store
  scripts/                  # fetch_data.sh, push_outputs.sh, tiny helpers

Why this layout? Code in src/ is reusable; notebooks stay lightweight; big artifacts live in persistent storage (Data Store), not in Git. This keeps clones fast and version history clean.

`data/README.md` template (use this verbatim and edit)¶

# Data for <project>

Primary storage: i:/iplant/home/<username>/projects/<proj>/data/

To fetch a working subset into this repo (replace <username> with YOUR CyVerse username — no angle brackets):

./gocmd get --icat --retry 3 -d -k -r \
  i:/iplant/home/<username>/projects/<proj>/data/ \
  ./data/

Notes:
- Approx size: <fill in>
- Provenance / last update: <fill in>

Tip: put just enough sample data under data/ (kilobytes/megabytes) so examples run quickly. Everything else: fetch with GoCommands.

Tiny helper scripts (optional)¶

scripts/fetch_data.sh

#!/usr/bin/env bash
set -euo pipefail
mkdir -p data
# Replace USERNAME and PROJ
./gocmd get --icat --retry 3 -d -k -r \
  i:/iplant/home/USERNAME/projects/PROJ/data/ \
  ./data/

scripts/push_outputs.sh

#!/usr/bin/env bash
set -euo pipefail
# Replace USERNAME and PROJ
./gocmd put --diff --icat --retry 3 -d -k \
  outputs/ \
  i:/iplant/home/USERNAME/projects/PROJ/outputs/

Make them executable: chmod +x scripts/*.sh.

6. Before You Power Down (checklist)¶

Git: Git sidebar shows no unstaged changes; latest commit pushed.
Data Store: Required outputs uploaded with ./gocmd put; spot‑check in DE File Browser or via ./gocmd ls i:/iplant/home/<username>/....
Repro notes: Container/image tag recorded in env/ and parameters in configs/.
Analysis info: Copy your Analysis ID from the DE Analyses tab (include it in support requests).
Kernel & instance: Restarted kernel if memory was tight; consider a larger hardware profile next launch if justified; then terminate the instance in Analyses.

Golden rule: nothing important left only on the VM. Code → GitHub; data/results → Data Store.

7. Troubleshooting (by symptom)¶

Lost files after shutdown
→ They only lived on the instance. Rerun, re‑fetch data, and preserve work to GitHub/Data Store next time.
Push failed / asked for a password
→ Remote is HTTPS. Re‑clone via SSH (git@github.com:ORG/REPO.git) and add your SSH key to GitHub (Settings → SSH keys). In a terminal, you can test with: ssh -T git@github.com.
“Permission denied (publickey)” in the Git widget
→ You didn’t add the instance’s public key to GitHub yet, or the agent isn’t loaded. Add the key (Settings → SSH keys) and relaunch the widget; if needed, rerun the SSH setup cell.
Widget shows three blue buttons but you expected Commit/Push
→ You’re not inside a repo folder. In the file browser, open the repo directory you cloned; the status panel will appear.
GoCommands can’t see storage / auth fails
→ Rerun ./gocmd init, accept defaults for host/port/zone, enter your CyVerse credentials; verify with ./gocmd whoami.
“.h5 signature not found” or corrupted file
→ You likely saved an error page as .h5. Re‑download with ./gocmd get and verify sizes.
Slow browser uploads
→ Keep browser uploads ≲ 2 GB. Use GoCommands for large transfers.
Out of memory / killed kernel
→ Save your work, shut down, then relaunch with a larger hardware profile (only if the job truly requires it). See the ethics note below.

8. Why This Works¶

Across BinderHub, JupyterHub, and cloud notebooks you’ll find the same pattern:

Ephemeral compute for fast iteration (your scratch pad)
Git‑backed collaboration for code and small artifacts (your lab notebook)
Persistent storage for datasets and large outputs (your filing cabinet)

CyVerse DE + Jetstream2 + Data Store map cleanly onto this triangle. The result is work that’s robust, repeatable, and explainable.

Ethics of resource use
Choose an instance size and runtime that match the job. Big/long runs are fine when justified; don’t lock up resources you aren’t using. Extend time in the Analyses tab only when you’re actively working, and terminate when finished.

9. Self‑Check (2 minutes)¶

What survives when the instance stops?
Which tool do you use for a 20 GB transfer?
Why SSH for GitHub instead of HTTPS?
Where does the canonical copy of your dataset live?
Where do you extend runtime or find your Analysis ID?

Answers

1. Only what you pushed to GitHub or saved in the Data Store. 2. **GoCommands** (resumable, checksum‑aware, `i:` paths). 3. SSH avoids passwords, works with 2FA, and integrates with the Git widget cleanly. 4. In the **Data Store**, not on the instance. 5. In the DE **Analyses** tab (hourglass to extend; ID shown there).
