threshold_state

Convert raw values to a standard state cube using a threshold.

Callable type: Grammar verb / pipe stage · Browse: State and events

Usage

from cubedynamics import verbs as v
v.threshold_state(*, threshold, direction, variable=None, name=None)

Arguments

Argument	Meaning	Default
threshold	See implementation docstring below; no parameter-specific description supplied.	required
direction	See implementation docstring below; no parameter-specific description supplied.	required
variable	See implementation docstring below; no parameter-specific description supplied.	None
name	See implementation docstring below; no parameter-specific description supplied.	None

Accepts

A continuous or categorical xarray field, or a summary produced by a reduction. Dataset inputs require variable= unless they contain only one data variable.

Returns

A condition Dataset with state, magnitude, and threshold variables plus explicit condition metadata.

Order / grammar behavior

Threshold then mean measures condition prevalence; mean then threshold defines a condition from an aggregate. Both are valid and intentionally distinct.

Minimal example

REAL DATA · Reviewed local PRISM observations; no live request.

Reproduce: imports, checked data and setup

Run in a clone after python -m pip install -e '.[vignettes]'.

from pathlib import Path
import hashlib
import json
import numpy as np
import pandas as pd
import xarray as xr
import matplotlib.pyplot as plt
from IPython.display import display
from cubedynamics import pipe, verbs as v

# Run in the cloned repository or beside a downloaded notebook in the repo.
repo = next(p for p in (Path.cwd(), *Path.cwd().parents)
            if (p / "tests/fixtures/real_data").is_dir())

def observed_cube(stem, variable):
    path = repo / "tests/fixtures/real_data" / (stem + ".nc")
    record = json.loads(path.with_suffix(".provenance.json").read_text())
    assert hashlib.sha256(path.read_bytes()).hexdigest() == record["fixture_sha256"]
    with xr.open_dataset(path, engine="scipy") as dataset:
        assert not dataset.attrs["is_synthetic"]
        result = dataset[variable].load()  # Only this small, reviewed local extract.
        result.attrs = {**dataset.attrs, **result.attrs}
    assert result.dims == ("time", "y", "x")
    assert np.all(np.diff(result.x) > 0) and np.all(np.diff(result.y) < 0)
    assert bool(np.isfinite(result).all())
    return result

cube = observed_cube("prism_boulder_january_2024", "tmax").rename("temperature")
assert cube.attrs["units"] == "degC"

plt.rcParams.update({'font.family': 'DejaVu Sans', 'font.size': 12, 'axes.titlesize': 13, 'axes.labelsize': 12, 'figure.facecolor': 'white', 'axes.facecolor': 'white', 'savefig.facecolor': 'white', 'figure.dpi': 140})

From continuous values to a state

On which days did a grid cell remain at or below freezing even at its daily maximum?

cold = (pipe(cube) | v.threshold_state(threshold=0, direction="below")).unwrap()
site = cube.isel(y=12, x=12)
state = cold.state.isel(y=12, x=12)
np.testing.assert_array_equal(state, site <= 0)

fig, axes = plt.subplots(2, 1, figsize=(5.4, 5.4), sharex=True, layout="constrained")
site.plot(ax=axes[0], color="#246b70", marker="o")
axes[0].axhline(0, color="0.4", linestyle="--", label="Threshold: 0°C")
axes[0].set(title="Before · PRISM daily maximum", ylabel="Temperature (°C)", xlabel="")
axes[0].legend(frameon=False)
axes[1].step(state.time, state.astype(int), where="mid", color="#246b70")
axes[1].set(title="After threshold_state() · at or below 0°C", xlabel="Date", ylabel="State", yticks=[0, 1], ylim=(-0.1, 1.1))
plt.show()

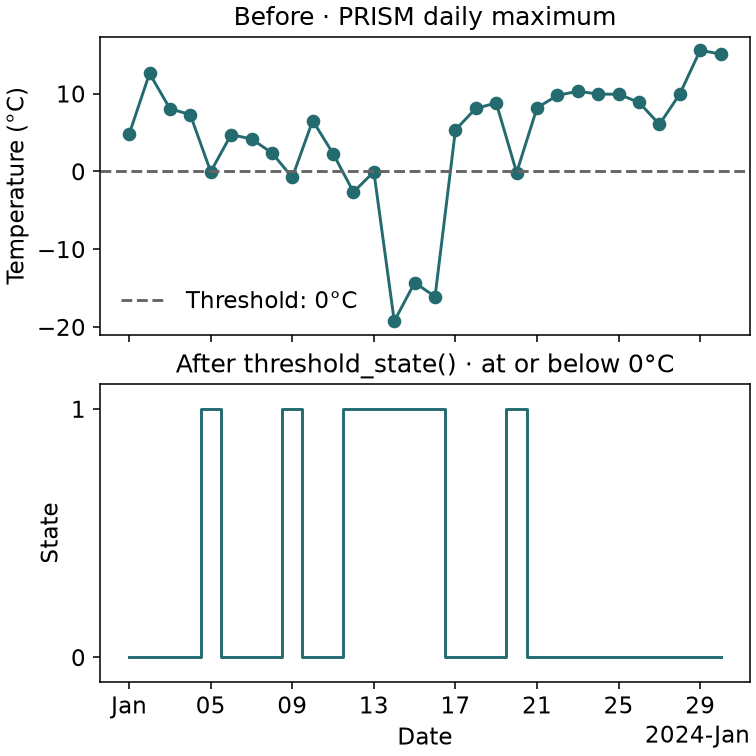

One Boulder PRISM grid cell in January 2024: daily maximum temperature becomes a boolean state. direction='below' includes equality (≤ 0°C), verified against the original values.

What changed? A true state describes a criterion, not an event duration or an ecological impact. This complete fixture has no missing values; missing-data policy must be checked for other inputs.
