Expected-Failure Contrast

A validator is only persuasive if it rejects plausible mistakes. This contrast run keeps the six-module production validation report unchanged and builds a separate report from one clean control, three deliberately corrupted data cubes, and one real FIRED geometry counterexample.

Download the expected-failure contrast report

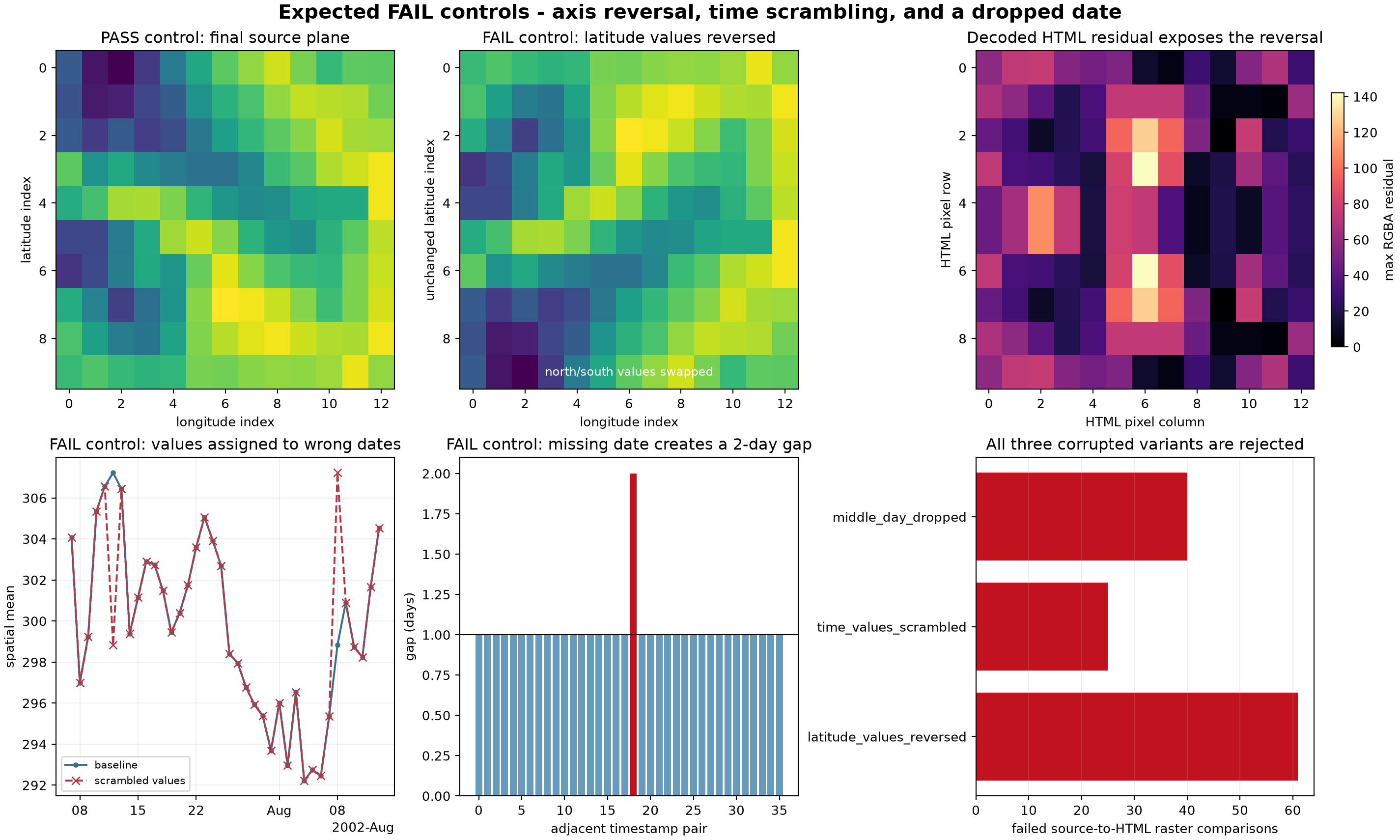

Cube Negative Controls

The clean event 20657 cube passes the complete source-to-HTML audit. The same audit is then run after changing only one data contract at a time:

  1. reverse latitude values while leaving latitude labels unchanged;
  2. swap two time planes while leaving timestamps unchanged; and
  3. remove the middle day.

All three are rejected. The latitude reversal disagrees with all 61 decoded HTML rasters, the time scramble disagrees with 25 rasters, and the dropped day creates a two-day timestamp gap and a cube-shape mismatch. This demonstrates that monotonic coordinate labels alone cannot conceal reversed or scrambled values.

Cube negative controls

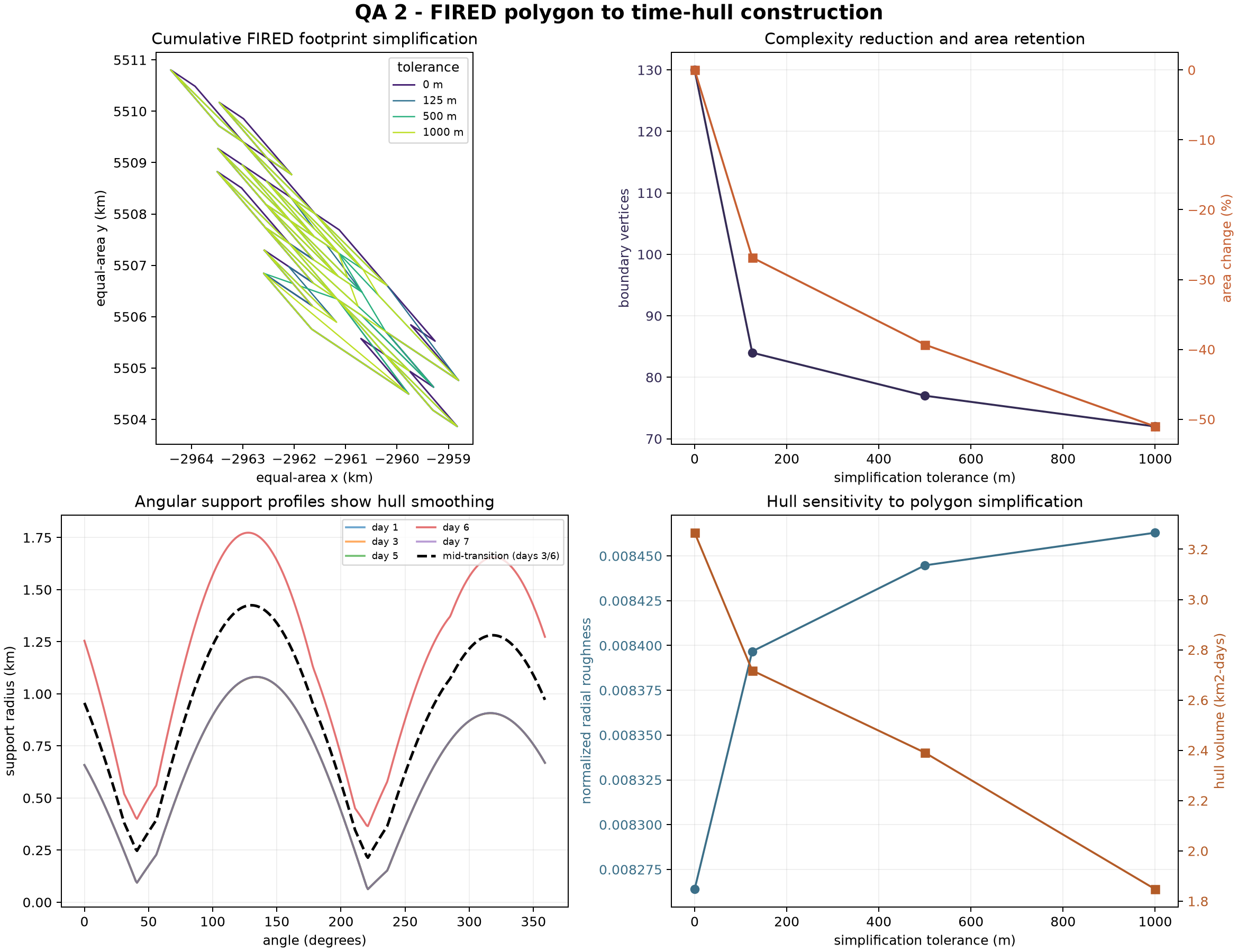

A Real Geometry Failure

The geometry scan also found a naturally difficult FIRED event rather than manufacturing a broken polygon. Event 72016 contains seven valid daily polygons, but simplifying them at the operational 125 m tolerance changes the cumulative union area by 26.86%. That exceeds the declared 10% acceptance threshold, so the module correctly reports FAIL. At 1000 m, the area change reaches 51.03%.

This is a sensitivity counterexample, not evidence that the main production sample failed. It shows why the tolerance is tested for every selected event instead of assumed safe from geometric validity alone.

Real FIRED geometry failure

Reproduce The Contrast

Run the contrast separately from the production suite:

uv run python scripts/run_validation_contrast.py --publish-docs

The command exits successfully only when the clean cube passes, every injected cube corruption is detected, and the selected real FIRED geometry case fails the declared threshold. It writes modular CSV, JSON, and PNG evidence under output/validation/contrast/ and the collated report under output/pdf/.

The negative controls are implemented in src/cubedynamics/validation/contrast.py, so reviewers can add another corruption without changing the production validators.
